C# / .NET

16-02-2012 22.05

Links

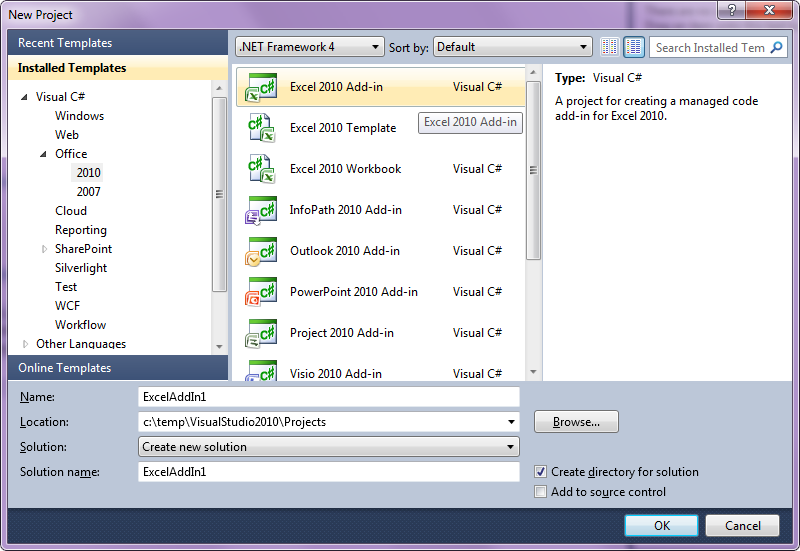

Erste Schritte mit Visual Studio

Neues Projekt, Konsole Applikation C#
Starten kann man das Programm mit CTRL + F5

Klassen in C#

Beispiel für eine Main Klasse

class MyClass
{
public MyClass()
{

}

static void Main(string[] args)
{
MyClass c1 = new MyClass();
var c2 = new MyClass();

Console.WriteLine("Hello World");
Console.WriteLine("Press a key");
Console.ReadKey();
}
}

Mit dem Schlüsselwort var wird der Datentyp der Variable automatisch bestimmt.

Vererbung

Eine Klasse, die eine abstrakte Klasse implementiert, die zwei Interfaces implementiert.

// interface
interface PersonInterfaceA { ... }

// another interface
interface PersonInterfaceB { ... }

// abstract class
abstract class AbstractPerson : PersonInterfaceA, PersonInterfaceB { ... }

// super class Person
class Person : AbstractPerson
{
private String descE = "This is a person";

public String getDescriptionA()
{
return this.descE;
}

public virtual String getDescriptionB()
{
return this.descE;
}
}

// final class Employee
sealed class Employee : Person
{
private String descP = "This is a person which is also an employee";

// does not override the father's method
public new String getDescriptionA()
{
return descP;
}

// does override the father's method
public override String getDescriptionB()
{
return descP;
}

}

Das Schlüsselwort sealed verhindert, dass jemand von dieser Klasse erben kann.

Die Methoden
getDescriptionA()
getDescriptionB()

unterscheiden sich durch das Schlüsselwort

virtual

Das hat Auswirkungen

Person   p1 = new Person();
Person p2 = new Employee();
Employee p3 = new Employee();

Console.WriteLine(p1.getDescriptionA()); // person (ok)
Console.WriteLine(p2.getDescriptionA()); // person (unexpected)
Console.WriteLine(p3.getDescriptionA()); // employee (ok)

Console.WriteLine(p1.getDescriptionB()); // person (ok)
Console.WriteLine(p2.getDescriptionB()); // employee (ok)
Console.WriteLine(p3.getDescriptionB()); // employee (ok)

Ohne virtual wird bei einer Variable vom Typ Person, die aber eigentlich eine Instanz vom Typen Employee enthält, die Methode aus der Person Klasse ausgeführt statt aus der Employee Klasse. Für Java Entwickler sicher überraschend.
Die Schlüsselwörter
new
override
an den Methoden im Erben verdeutlichen das Verhalten noch mal.

is / as / instance of

So kann man in C# testen ob ein Objekt eine Instanz von einer bestimmten Klasse enthält
if(o3 is Father)
{
Father f=(Father) myobject;
}

So kann man testen und casten in einem Schritt
Father t=myobject as Father;
Das Objekt ist null, wenn der Typ nicht passend ist

public class Father { }

public class Son : Father { }

Object o1 = new Object();
Object o2 = new Father();
Object o3 = new Son();

Father t1= o1 as Father;
Father t2= o2 as Father;
Father t3= o3 as Father;

Console.WriteLine("o1 is instance of Father? "+ (t1!=null) ); // false
Console.WriteLine("o2 is instance of Father? "+ (t2!=null) ); // true
Console.WriteLine("o3 is instance of Father? "+ (t3!=null) ); // true

Getter / Setter

Zwei Kurzschreibweisen für Getter und Setter in C#

class MyPoint
{
private int _posX;

public int posX
{
get
{
return(_posX);
}
set
{
this._posX = value;
}
}

public int posY { get; set; }
}

Diese Aufrufe nutzen dann den Getter / Setter

MyPoint p = new MyPoint();
p.posX = 5;
p.posY = p.posX + 3;

Exceptions

public void bang()
{
try
{
int zero = 0;
int c = 5 / zero;
}
catch (DivideByZeroException e)
{
Console.WriteLine("Exception: " + e);
throw e;
}
finally
{
Console.WriteLine("Exception method finished.");
}
}

Methoden

Variable Anzahl an Parametern

Eine Methode kann eine variable Anzahl an Parametern haben. Aus Performancegründen kann man trotzdem noch Varianten der Methode implementieren, die eine fixe Anzahl an Parametern haben, wenn man erwartet, dass diese Anzahl an Parametern oft benötigt wird.

 public void method(params String[] args)
{
Console.Write("Method 4: ");
for (int i = 0; i < args.Length; i++)
{
Console.Write(args[i] + ", ");
}
Console.WriteLine("");
}

public void method(String a)
{
Console.WriteLine("Method 1: "+a);
}

public void method(String a, String b)
{
Console.WriteLine("Method 2: " + a + ", " + b);
}

public void method(String a, String b, String c)
{
Console.WriteLine("Method 3: " + a + ", " + b + ", " + c);
}

Solch ein Aufruf, wählt dann automatisch die passende Methode aus:
method("Test", "me", "now", "and", "here");

Benannte Parameter

Man kann in C# beim Aufruf einer Method die Parameter auch über ihren Namen zuweisen, anstatt wie üblich über die Reihenfolge der Parameter.
Das ist besonders interessante wenn Parameter optional sind. Hier sind z.B. age und name optional

public void myMethod(int id, int age = 42, string name = "John Doe") {

Und so kann man beim Aufruf gezielt den mittleren Parameter auslassen

myMethod(3, name:”Frank”);


Call by reference

In C# kann man auch Basistypen mit call by reference an eine Methode übergeben
// call by reference, ingoing variables do not need to be initialized
public void initValues(out int v1, out int v2)
{
v1 = 42;
v2 = 11;
}

// call by copy
public void swapValuesA(int v1, int v2)
{
int tmp = v1;
v1 = v2;
v2 = tmp;
}

// call by reference, ingoing variables need to be initialized
public void swapValuesB(ref int v1, ref int v2)
{
int tmp = v1;
v1 = v2;
v2 = tmp;
}

So werden die Methoden dann aufgerufen
// two variables, not initialized
int x, y;

// this would not work, not initialized
//swapValuesB(ref x, ref y);

// passing them by out however works
initValues(out x, out y);

// if not passed via reference, the values are copied and not changed
swapValuesA(x, y);

// this will work
swapValuesB(ref x, ref y);

internal / internal protected

internal

Zugriff für alle Objekte die im selben Assembly gelandet sind.

internal protected

Zugriff für alle Objekte, denen interal oder protected Zugriff gewährt würde.

Innere Klassen

In C# sharp haben innere Klassen keine automatische Referenz auf die äußere Klasse (wie das z.B. in Java ist). Man muss sich also selbst um eine solche Referenz kümmern. Siehe auch
C# nested classes are like C++ nested classes, not Java inner classes
// Normal class
class MyOuterClass
{
private int myOuterValue = 42;

// factory method to get a new inner class with a reference to the outer class
public MyInnerClass getNewInnerClass()
{
return new MyInnerClass(this);
}

// inner class
public class MyInnerClass
{
private static int myInnerValue = 4;

// reference to the outer class
MyOuterClass _outerClass;

// contructor which sets the reference to the outer class
public MyInnerClass(MyOuterClass pOuterClass)
{
_outerClass = pOuterClass;
}

// test access to the outer class
public int foo()
{
// Does work in Java, but not in C#
//int result = myOuterValue + myInnerValue;

// Works in both Languages
int result = _outerClass.myOuterValue + myInnerValue;
return result;
}
}
}
// create an outer class, than an inner class for it
MyOuterClass outer = new MyOuterClass();
MyOuterClass.MyInnerClass inner = new MyOuterClass.MyInnerClass(outer);

// use the factory method to create an inner class for an outer class
MyOuterClass.MyInnerClass inner2=outer.getNewInnerClass();

Konstruktoren

Auch in C# haben Klassen offenbar automatisch einen parameterlosen Konstruktor.

Mit dem Schlüsselwort : base() kann ein Konstroktur einer Vaterklasse aufgerufen werden:

class Vehicle
{
protected String name;
protected int price;

public Vehicle(String pName, int pPrice)
{
this.price = pPrice;
this.name = pName;
}
}

class Car : Vehicle
{
private Boolean automatic;

// implicit call to the parent's constructor
public Car(String pName, int pPrice, Boolean pAutomatic) : base(pName, pPrice)
{
this.automatic = pAutomatic;
}

public override string ToString()
{
return "Car " + this.name + ", Price " + this.price + " Automatic: " + this.automatic;
}
}

Static Block

class Foo
{
private static int objectCounter;

// static init block, static { ... } in Java
static Foo()
{
Console.WriteLine("Init static block ...");
objectCounter = 0;
}

// normal constructor
public Foo()
{
Console.WriteLine("Create new object ...");
objectCounter++;
}
}

...

var f1 = new Foo();
var f2 = new Foo();
var f3 = new Foo();

Ausgabe
Init static block ...
Create new object ...
Create new object ...
Create new object ...

const, readonly

Mit const kann man verhindern, dass Basistyp Variablen nach der ersten Initialisierung noch mal geändert werden.

class MyContainer
{
public const int STARTVALUE = 42;

public int myValue;

public MyContainer()
{
// const prevents this
// STARTVALUE = 3;

myValue = STARTVALUE;


}
}

Für nicht Basistypen hilft das allerdings nicht. Dafür gibt es readonly, welches Zuweisungen auch Variablen außerhalb des Konstruktors verhindert. Der Inhalt von nicht Basistypen kann über entsprechende Methoden aber weiterhin noch geändert werden.

class TestMyContainer
{
const MyContainer mc = new MyContainer();
readonly MyContainer mc2;

public TestMyContainer()
{
mc2 = new MyContainer();
}

public void foo()
{
// const does not prevent this as mc is no basic type
mc = new MyContainer();
mc.myValue = 3;

// readonly prevents this outside the constructor
//mc2 = new MyContainer();

// but this is still allowed
mc2.myValue = 3;
}
}

Bedingungen

Bedingungen z.B. in if Anweisungen akzeptieren nur noch echte boolschen Ausdrücken

int a=0;

// ok, boolean expression
if (a == 0)
{
}
// error, a is no boolean expression
else if (a)
{
}
else
{
}

while (a == 0) { }

// error
while (a) { }

switch Blöcke

Switch Blöcke können auch mit Strings umgehen, jedes Case Statement, welches Code enthält, muss mit return oder break abgeschlossen werden. Ansonsten muss mit goto gezielt der nächste case Abschnitt benannt werden.

switch(pID)
{
// each case statement has to be finished by a break, a return statement or a goto statement
case "Z":
result = 3;
break;

// several case statements can be group if only the last one contains code
case "X1":
case "X2":
case "X3":
result = 1;
break;

// this is not allowed
case "Y1":
result = 3;
case "Y2":
result = result + 1;

// but you can use goto
case "G1":
result = 50;
goto case "G2";
case "G2":
result = result + 1;
break;

default:
result = 99;
break;
}

Datentypen

Mit @ vor einer String Konstanten kann man verhindern, dass der Inhalt des String irgendwie interpretiert wird (verbatim string literal).
String myFilename=@"c:\temp\foo.txt"

Container

Arrays


int[] myNumbers = new int[11];
int[] prime1 = { 2, 3, 5, 7, 11 };
int[] prime2 = new int[5] { 2, 3, 5, 7, 11 };

// more than one dimension
char[,] chess = new char[8, 8];
chess[0, 0] = 'r';

// normal for loop
for (int i = 0; i < prime1.Length; i++)
{
Console.WriteLine("Position: "+i + " value: " + prime1[i]);
}

// foreach
foreach (int curPrime in prime1)
{
Console.WriteLine("Value: {0}", curPrime);
}

Liest man über das Ende eines Arrays hinaus erhält man eine
System.IndexOutOfRangeException

Indexern

Eigene Objekte wie ein Array durchlaufen können

class FooWithIndex
{
...
public int this[int index]
{
get
{
...
}
set
{
...
}
}
...
}

Iteratoren

 class Foo : System.Collections.IEnumerable
{
String[] people = { "Frank", "Joe", "Jane" };

public System.Collections.IEnumerator GetEnumerator()
{
// list all values the iterator will walk through
foreach (String s in people)
{
// yield is a special keyword here, this is no real return statement
yield return s;
}
}
}

...

Foo f=new Foo();
foreach (String s in f)
{
Console.WriteLine(s);
}

enum

enum Color : byte
{
RED = 1 ,
GREEN = 2,
BLUE = 4
}

Listen

using System.Collections.Generic;
...

List<int> list = new List<int>();
list.Add(3);
list.Add(5);
list.Add(7);

for(int i=0; i<list.Count; i++)
{
Console.WriteLine(i + ": "+ list.ElementAt(i));
}

foreach (int p in list)
{
Console.WriteLine(p);
}

LINQ

LINQ (Language Integrated Query) ist eine Abfragesprache innerhalb von C#

// this is the data
int[] ages = new int[] { 12, 18, 19, 20, 40, 69, 18, 47, 59, 61, 60, 100 };

// define a query
IEnumerable<int> myQuery = from oneAge in ages where ( oneAge >= 18 && oneAge < 60 ) orderby oneAge select oneAge;

// walk through the results
foreach (int x in myQuery)
{
Console.WriteLine(x);
}

Operatoren überladen

 class Foo
{
public int myValue;

public Foo(int pValue)
{
myValue = pValue;
}

// define our own + operator
public static Foo operator +(Foo op1, Foo op2)
{
Foo result = new Foo(op1.myValue + op2.myValue);
return result;
}
}

...

Foo f1 = new Foo(42);
Foo f2 = new Foo(8);
Foo f3 = f1 + f2;

22-09-2012 11.37

Office-Entwicklung mit Visual Studio 2010 (VSTO), eigener Excel Ribbon

So kann man mit Visual Studio 2010 Professional (VSTO) ein eigenes Ribbon für Excel erstellen
Excel 2010 new ribbon und mit entsprechender Programmlogik versehen.

Siehe auch

Visual Studio 2010 öffnen, New Project, Visual C#, Office, 2010, Excel 2010 Add-in.
Visual Studio 2010 new project

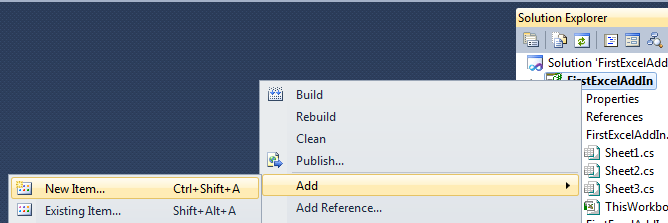

Dann im Solution Explorer über das Kontextmenü ein neues Item einfügen: Ribbon (Visual Designer)

Visual Studio 2010 new item

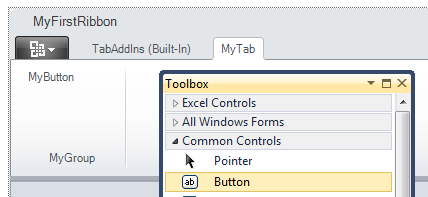

In den Ribbon erstellt man dann einen Ribbon Tab und in diesen Tab zieht man dann aus der Toolbox erst eine Group und dann einen Button in die neue Group

Visual Studio 2010 designer
Den Button doppelklicken, dann öffnet sich ein Fenster mit dem Quellcode der Methode, die aufgerufen wird, sobald der Button gedrückt wird. Diese kann man dann enstsprechend abändern:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;

using System.Windows.Forms;

using Microsoft.Office.Tools.Ribbon;
using Microsoft.Office.Interop.Excel;

namespace ExcelAddIn1
{
public partial class Ribbon1
{
private void Ribbon1_Load(object sender, RibbonUIEventArgs e)
{

}

private void button1_Click(object sender, RibbonControlEventArgs e)
{
var excel = Globals.ThisAddIn.Application;
var activeSheet = (Worksheet)excel.ActiveSheet;
var cell = activeSheet.Range["C4", Type.Missing];

MessageBox.Show("This is the value of C4: "+cell.Value2);
}
}
}

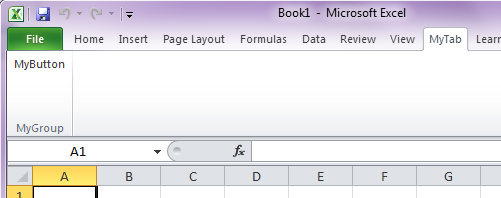

Startet man die Anwendung, findet man in Excel dann einen neuen Tab mit unserem neuen Button:

Excel 2010 new ribbon

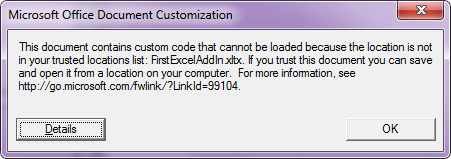

Kommt beim Ausführen folgender Fehler ...

Excel 2010 error
This document contains custom code that cannot be loaded because the location is not in your trusted locations list:

... liegt das Projekt vermutlich auf einem Netzlaufwerk.

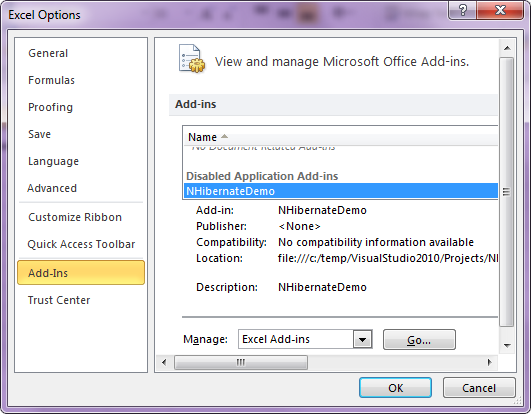

Von Excel gesperrte Anwendung wieder aktivieren

Sollte es während der Ausführung des Add-Ins zu Problemen kommen, kann es passieren, dass das Programm von Excel auf einer Blackliste landet. So kann man es danach wieder aktivieren:
Excel -> File -> Options -> Add-Ins
Excel unlock C# Ribbon

Beispiel Code VSTO Excel

Das aktuelle Excel Sheet mit dem wir arbeiten wollen
/// <summary>/// This is the Excel Sheet we will operate on
/// </summary>
protected Worksheet excelSheet=(Worksheet) Globals.ThisAddIn.Application.ActiveSheet;

Zugriff auf die benutzen Zellen in Excel
/// <summary>
/// Every Execl sheet has a 2d array with the cells that are in use.
/// This returns the highest number of rows this array has
/// </summary>
/// <returns>Highest number of rows in use</returns>
protected int getMaxRows()
{
return excelSheet.UsedRange.Rows.Count;
}

/// <summary>
/// Every Execl sheet has a 2d array with the cells that are in use.
/// This returns the highest number of columns this array has
/// </summary>
/// <returns>Highest number of columns in use</returns>
protected int getMaxCols()
{
return excelSheet.UsedRange.Columns.Count;
}

/// <summary>
/// This reads cell pRow, pCol from the array of used cells the worksheet and returns it as a range
/// </summary>
/// <param name="pRow">Row</param>
/// <param name="pCol">Column</param>
/// <returns>Cell pRow / pCol</returns>
protected Range getCellAsRange(int pRow, int pCol)
{
Range currentCell = (Range)excelSheet.UsedRange[pRow, pCol];
return currentCell;
}

/// <summary>
/// Read a row into an array
/// </summary>
/// <param name="row">Your row number</param>
/// <returns>The row as an array</returns>
protected Range[] getRowAsArray(int row)
{
if (row > getMaxRows())
{
return new Range[0];
}

//Range rngUsed = excelSheet.UsedRange;

Range[] thisRow = new Range[getMaxCols()];
for (int col = 1; col <= getMaxCols(); col++)
{
Range currentCell = getCellAsRange(row, col);
thisRow[col - 1] = currentCell;
}
return thisRow;
}

/// <summary>
/// Return the header cell which contains your String
/// </summary>
/// <param name="pHeaderText">The String</param>
/// <returns>The cell</returns>
protected Range getHeaderCell(String pHeaderText)
{
Range[] firstRow = getRowAsArray(1);
foreach (Range r in firstRow)
{
String headerValue = r.Value2;
if (headerValue!=null && headerValue.Equals(pHeaderText))
{
return r;
}
}
return null;
}

/// <summary>
/// Search for the header cell with your String and changes its value
/// to your second string
/// </summary>
/// <param name="pOldValue">String to be replaced</param>
/// <param name="pNewValue">Replacement string</param>
/// <returns>true if we found a header cell with your String and replaced it</returns>
protected bool renameHeaderCell(String pOldValue, String pNewValue)
{
Range oldCell = getHeaderCell(pOldValue);
if (oldCell != null)
{
oldCell.Value2 = pNewValue;
return true;
}
return false;
}

Eine neue (leere) Spalte oder Zeile einfügen
/// <summary>
/// Insert an empty column before your position
/// </summary>
/// <param name="pPosition">Your position (used column number)</param>
/// <param name="pNewColumnName">The column header of your new column</param>
protected void addEmptyColumnBeforeYourPosition(int pPosition, String pNewColumnName)
{
// get the column which will be behind the new column
Range firstRowAtPosition=getCellAsRange(1, pPosition);
Range entireColumn=firstRowAtPosition.EntireColumn;

// insert the new column
entireColumn.Insert(XlInsertShiftDirection.xlShiftToRight, false);

// get the new column (we use Cells here and not UsedCells as the new column is not yet in use)
Range newColumn = excelSheet.Cells[1, pPosition];
newColumn.Value2 = pNewColumnName;
}

/// <summary>
/// Insert an empty row before your position
/// </summary>
/// <param name="pPosition">Your position (used row number)</param>
protected void addEmptyRowBeforeYourPosition(int pPosition)
{
// get the row which will be below the new row
Range firstRowAtPosition = getCellAsRange(pPosition, 1);
Range entireRow = firstRowAtPosition.EntireRow;

// insert the new row
entireRow.Insert(XlInsertShiftDirection.xlShiftDown, false);

// get the new row (we use Cells here and not UsedCells as the new row is not yet in use)
Range newRow = excelSheet.Cells[pPosition, 1];

// write any not empty value in the new row so the Array UsedRange will contain the row
newRow.Value2 = " ";
}

Leere Zellen, Zeile oder Spalten finden und löschen
/// <summary>
/// Test if a cell / range is empty be reading its value
/// </summary>
/// <param name="pCell">Your cell / range</param>
/// <returns>True if empty, false if not</returns>
protected bool isEmptyCell(Range pCell)
{
if (pCell == null) return true;
if (pCell.Value2 == null) return true;
if (pCell.Value2.ToString() == "") return true;
return false;
}

/// <summary>
/// is row number rowNr in the array of used cells an empty row?
/// </summary>
/// <param name="rowNr">Row number</param>
/// <returns>Is this an empty row</returns>
protected bool isEmptyRow(int rowNr)
{
//Range currentCell = getCellAsRange(rowNr, 1);
//Range currentRow = currentCell.EntireRow;
//return isEmptyCell(currentRow);

for (int c = 1; c <= getMaxCols(); c++)
{
Range currentCell = getCellAsRange(rowNr, c);
if (!isEmptyCell(currentCell))
{
return false;
}
}
return true;
}

/// <summary>
/// is this an empty column?
/// </summary>
/// <param name="colNr">Your column number</param>
/// <param name="skipHeader">If true a column where there is only one value in the first row will still be considered as empty</param>
/// <returns>True if this row is empty, false otherwise</returns>
protected bool isEmptyColumn(int colNr, bool skipHeader)
{
int startRow = 1;
if (skipHeader) startRow = 2;

for (int r = startRow; r < getMaxRows(); r++)
{
Range currentCell = getCellAsRange(r, colNr);
if (!isEmptyCell(currentCell))
{
return false;
}
}
return true;
}

/// <summary>
/// Remove all columns which are empty
/// </summary>
protected void dropEmptyColumns()
{
for (int col = getMaxCols(); col > 0; col--)
{
if (isEmptyColumn(col, false))
{
getCellAsRange(1, col).EntireColumn.Delete();
}
}
}

Bei wirklich riesigen Excelsheets kann das zeilenweise Untersuchen und Löschen allerdings spürbar lange dauern. Eine Möglichkeit ist dann, das Excelsheet zu sortieren, dann sind die leeren Zeilen alle am Ende. Jetzt muss man nur noch herausfinden, wo der Bereich der leeren Zeilen anfängt und man kann den ganzen Block auf einmal löschen.
/// <summary>
/// On a sorted sheet where the empty lines are at the bottom, this will remove all the empty lines
/// </summary>
protected void removeBlankLines()
{
int lastRowNr = getMaxRows();

// empty worksheets are ok
if (lastRowNr < 1) return;

// we require the sheet to be sorted ascendending, so the empty rows should be at the end of the file
// if the last line is not empty, we're done
if (!isEmptyRow(lastRowNr))
{
return;
}

// this is the first row which
int minRowEmpty;

// if the first row is not empty, we have to delete everything
if (isEmptyRow(1))
{
minRowEmpty = 1;
}
else
{
// search for the minimum empty row
int middle = getMiddle(1, lastRowNr);
minRowEmpty = removeBlankLines_findMinRowEmpty(middle, 1, lastRowNr);
}

//Range delme = excelSheet.get_Range(min, max);
//delme.EntireRow.Delete();
for (int r = getMaxRows(); r >= minRowEmpty; r--)
{
getCellAsRange(r, 1).EntireRow.Delete();
}
}

/// <summary>
/// Find the middle between two positions.
/// If there is no exact middle, take the one with the samller id
/// </summary>
/// <param name="min">min pos</param>
/// <param name="max">max pos</param>
/// <returns>the middle pos</returns>
protected int getMiddle(int min, int max)
{
int middle = max - min;
middle = middle / 2;
middle = min + middle;
return middle;
}

/// <summary>
/// The method can only operate on a sorted sheet, where the empty lines are at the bottom of the file!
///
/// This method expects:
/// - the max know row which is not empty
/// - the min known row which is empty
/// - a row to check which is between the other ones
///
/// It returns the min row which is still empty
/// </summary>
/// <param name="rowToCheck">The row to be checked</param>
/// <param name="maxRowNotEmpty">The max known row which is not empty</param>
/// <param name="minRowEmpty">The min known row which is empty</param>
/// <returns>The min row which is still empty</returns>
protected int removeBlankLines_findMinRowEmpty(int rowToCheck, int maxRowNotEmpty, int minRowEmpty)
{
// check if the to be checked row is empty
if (isEmptyRow(rowToCheck))
{
// the range will not improve, return the best result found
if (minRowEmpty <= rowToCheck) return minRowEmpty;
minRowEmpty = rowToCheck;
}
else
{
// the range will not improve, return the best result found
if (maxRowNotEmpty >= rowToCheck) return minRowEmpty;
maxRowNotEmpty = rowToCheck;
}
// next check this one
int middle = getMiddle(maxRowNotEmpty, minRowEmpty);

// recursion
return removeBlankLines_findMinRowEmpty(middle, maxRowNotEmpty, minRowEmpty);
}

Duplikate einer Zeile finden
/// <summary>
/// Check if two rows have the same content
/// The second row is provided as an array
/// so you can cache it and avoid re reads
/// </summary>
/// <param name="rowA">Your row number</param>
/// <param name="rowBAsArray">The other row as an array</param>
/// <returns>True if the have the same content</returns>
protected bool isDuplicateRow(int rowA, Range[] rowBAsArray)
{
for (int c = 1; c <= getMaxCols(); c++)
{
Range cellA = getCellAsRange(rowA, c);
Range cellB = rowBAsArray[c - 1];

// if one cell differs the whole line can not be equal
if (cellA.Value2 != cellB.Value2)
{
return false;
}
}
// if we reach here the whole line is equal
return true;
}

Besteht diese Zelle aus 3 Großbuchstaben
/// <summary>
/// Check if this cell consists of 3 upper case letters (like a ISO currency code)
/// </summary>
/// <param name="pCell">The cell to be tested</param>
/// <returns>True if it looks like a currency</returns>
protected bool is3LetterCharacterField(Range pCell)
{
if(isEmptyCell(pCell))
{
return false;
}
else
{
String cellValue=pCell.Value2.ToString();
if (cellValue.Length != 3)
{
return false;
}
else
{
bool characterOnly=Regex.IsMatch(cellValue, @"^[A-Z]+$");
return characterOnly;
}

}
}

Die Spaltenbreite und Zeilenhöhe automatisch anpassen
/// <summary>
/// Set the cell width and cell height to autofit
/// </summary>
protected void autofit()
{
getCellAsRange(1, 1).EntireRow.EntireColumn.AutoFit();
getCellAsRange(1, 1).EntireColumn.EntireRow.AutoFit();
}

Zusammengefasste Zellen trennen
/// <summary>
/// Unmerge all cells in the sheet
/// </summary>
protected void doUnMergeAllCells()
{
Range rngUsed = excelSheet.UsedRange;
rngUsed.UnMerge();
}

Sortieren
/// <summary>
/// Sort the whole sheet ascendening, excluding the header line
/// </summary>
protected void sortSheet()
{
// first cell under the header line
Range firstCell = excelSheet.Cells[2, 1];
// last cell in the last row
Range lastCell = excelSheet.Cells[getMaxRows(), getMaxCols()];

// all but the header row
Range all = excelSheet.get_Range(firstCell, lastCell);

// sort
all.Sort(all.Columns[1, Type.Missing], Microsoft.Office.Interop.Excel.XlSortOrder.xlAscending);
}

Updates der Excel GUI deaktivieren
/// <summary>
/// For long running operations you can disable the screen updating
/// and hope for better performance
/// </summary>
/// <param name="yes">Disable screen updating?</param>
protected void setScreenUpdating(bool yes)
{
Globals.ThisAddIn.Application.ScreenUpdating = yes;
}

Dateiauswahl Dialog
/// <summary>
/// let the use choose a file
/// </summary>
/// <returns>The filename of the first file the user selected</returns>
private String getFileFromUser()
{
// Which file to open?
Microsoft.Office.Core.FileDialog fileDialog = this.application.get_FileDialog(Microsoft.Office.Core.MsoFileDialogType.msoFileDialogOpen);
if (fileDialog.Show() != 0)
{
Microsoft.Office.Core.FileDialogSelectedItems selectedItems = fileDialog.SelectedItems;
foreach (String fileName in selectedItems)
{
// we only take the first filename
return fileName;
}
}
return null;
}

Eine Datei mit fester Spaltenbreite importieren
String filename=...;

// US
int orgin = 437;

// start at first row
int startRow = 1;

// our import file has a fixed width format
XlTextParsingType fileParseFormat = XlTextParsingType.xlFixedWidth;

// the field definitions
int[,] fieldInfo2 = new int[5, 2] { { 0, (int) XlColumnDataType.xlGeneralFormat},
{26, (int) XlColumnDataType.xlTextFormat},
{56, (int) XlColumnDataType.xlSkipColumn},
{73, (int) XlColumnDataType.xlMDYFormat},
{74, (int) XlColumnDataType.xlGeneralFormat}
};

// open and parse file
this.application.Workbooks.OpenText(Filename: filename, Origin: orgin, StartRow: startRow, DataType: fileParseFormat, FieldInfo: fieldInfo1);
21-07-2012 14.57

NHibernate

Hibernate in für C#

Links


NHibernate C# Tutorial

Angenommen, wir hätten auf einer Oracle Datenbank bereits folgende Struktur angelegt:
create table MyUser.city   (cityid number primary key, cityname varchar2(255));
create table MyUser.person (id number primary key, name varchar2(255), citycode number references MyUser.city(cityid) );

insert into MyUser.city (cityid, cityname) values (1, 'New York');
insert into MyUser.city (cityid, cityname) values (2, 'Frankfurt')

insert into MyUser.person (id, name, citycode) values (1, 'Mr Foo', 2);
insert into MyUser.person (id, name, citycode) values (2, 'Jane Doe', 2);
insert into MyUser.person (id, name, citycode) values (3, 'John', 1);

SELECT * FROM MyUser.person p, MyUser.CITY c where p.CITYCODE=c.CITYID;

Als erstes schreiben wir eine C# Klasse, die einer Zeile aus der Datenbanktabelle City entsprechen wird
namespace NHibernateDemo
{
public class City
{
public virtual long cityid { get; set; }
public virtual string cityname { get; set; }
}
}

Wichtig ist, dass die Klasse public ist und die Getter und Setter public virtual.

Wir legen im Projekt einen neuen Ordner „Mappings“ an und dort eine XML Datei „City.hbm.xml“
<?xml version="1.0" encoding="utf-8" ?>
<hibernate-mapping xmlns="urn:nhibernate-mapping-2.2"
assembly="NHibernateDemo"
namespace="NHibernateDemo">

<class name="City">
<id name="cityid">
<generator class="increment" />
</id>
<property name="cityname" />
</class>

</hibernate-mapping>

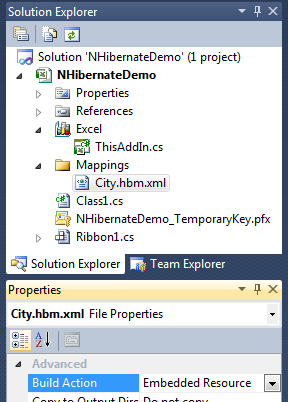

In den Properties der XML Datei setzen wir Build Action auf Embedded Resource
NHibernate
Jetzt NHibernate runterladen und irgendwo hin entpacken. Im Projekt legen wir neben den Mappings Ordner einen neuen Ordner SharedLibs an und kopieren aus dem gerade entpackten NHibernate die Dateien aus dem Ordner „Required_Bins“ in den neuen Ordner SharedLibs.

Wenn man möchte, kann man jetzt das Schema für die Mapping XML angeben. Dazu die XML öffnen, mit dem Cursor irgendwo in die Datei klicken und dann in den Properties auf die Datei nhibernate-mapping.xsd verweisen (haben wir gerade kopiert).

NHibernate

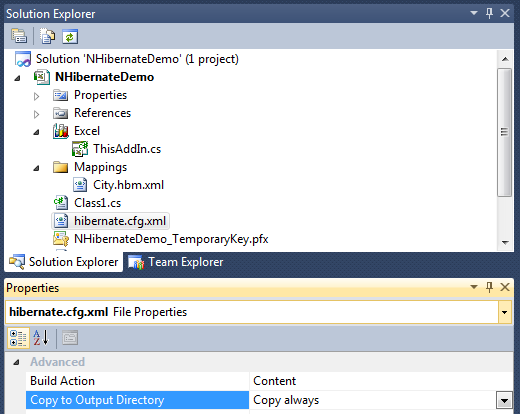

Jetzt konfigurieren wird NHibernate. Dazu legen wir eine Datei hibernate.cfg.xml an und setzen Copy to Output Directory auf Copy always
NHibernate
Auch hier kann man wieder auf passende Schemadefinition (nhibernate-configuration.xsd) aus der NHibernate Distribution verweisen.

<hibernate-configuration xmlns="urn:nhibernate-configuration-2.2">
<session-factory>
<property name="connection.provider">NHibernate.Connection.DriverConnectionProvider</property>
<property name="dialect">NHibernate.Dialect.Oracle10gDialect</property>
<property name="connection.driver_class">NHibernate.Driver.OracleDataClientDriver</property>
<property name="connection.connection_string">
User Id=MyUser;
Password=supersecret;
Data Source=MyDataBase;
Pooling=true;
Enlist=false;
Statement Cache Size=50;
Min Pool Size=10;
Incr Pool Size=5;
Decr Pool Size=2;
</property>
<property name="show_sql">true</property>
<!-- <property name="proxyfactory.factory_class">NHibernate.ByteCode.LinFu.ProxyFactoryFactory, NHibernate.ByteCode.LinFu</property> -->
<mapping assembly="NHibernateDemo"/>
</session-factory>
</hibernate-configuration>

Damit das funktioniert muss es in der tnsnames.ora des lokalen Oracle Clients einen entsprechenden Eintrag mit dem Namen MyDataBase geben.

Damit wir mit der Oracle Datenbank kommunizieren können, benötigen wir entsprechende Treiber. Für unsere Oracle Datenbank benutzen wir Oracle Data Provider for .NET (odp.net).
Optional kann man dabei auch gleich die Oracle Developer Tools for Visual Studio mitinstallieren.

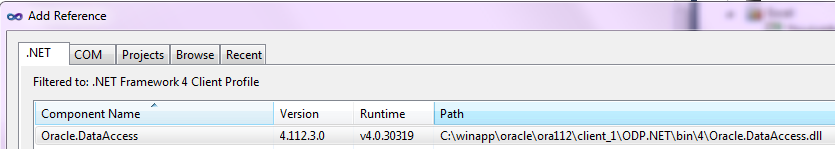

Die Oracle.DataAccess.dll über Add Reference, .NET hinzufügen
NHibernate

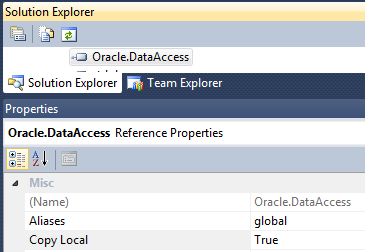

und danach für diese Referenz Copy Local auf True setzen
NHibernate
Jetzt versuchen wir mal aus der Datenbank zu lesen:

namespace NHibernateDemo
{
public class NHibernateDBStuff
{
private static NHibernate.ISessionFactory _sessionFactory;

private static NHibernate.ISessionFactory sessionFactory
{
get
{
if (_sessionFactory == null)
{
var cfg = new Configuration();

cfg.Configure();
//cfg.AddAssembly(typeof(City).Assembly);
_sessionFactory = cfg.BuildSessionFactory();
}
return _sessionFactory;
}
}


public static NHibernate.ISession getSession()
{
return sessionFactory.OpenSession();
}

}

}

 var session=NHibernateDBStuff.getSession();

var query = session.CreateQuery("from City");
var result1 = query.List();

foreach (City c in result1)
{
...
}

Jetzt bilden wir eine zweite Tabelle ab und verknüpfen diese über das NHibernate Mapping. Eine Person ist genau einer City zugeordnet, eine City ist beliebig vielen Personen zugeordnet.
using System.Linq;
using System.Text;
using System;

namespace NHibernateDemo
{

public class Person
{
public virtual long id { get; set; }
public virtual String name { get; set; }
public virtual long citycode { get; set; }
public virtual City city { get; set; }
}
}
<?xml version="1.0" encoding="utf-8" ?>
<hibernate-mapping xmlns="urn:nhibernate-mapping-2.2"
assembly="NHibernateDemo"
namespace="NHibernateDemo">

<class name="Person">
<id name="id">
<generator class="increment" />
</id>
<property name="name" />
<property name="citycode" />
<many-to-one name="city" column="citycode"/>
</class>

</hibernate-mapping>

using System;
using System.Linq;
using System.Text;

using Iesi.Collections;

namespace NHibernateDemo
{
public class City
{
public virtual long cityid { get; set; }
public virtual string cityname { get; set; }
public virtual ISet personsInCity { get; set; }
}
}
<?xml version="1.0" encoding="utf-8" ?>
<hibernate-mapping xmlns="urn:nhibernate-mapping-2.2"
assembly="NHibernateDemo"
namespace="NHibernateDemo">

<class name="City">
<id name="cityid">
<generator class="increment" />
</id>
<property name="cityname" />
<set lazy="true" table="Person" name="personsInCity" inverse="true" cascade="all">
<key foreign-key="citiyid" column="citycode"/>
<one-to-many class="Person" />
</set>
</class>

</hibernate-mapping>

Nicht vergessen, auf für die neue XML Datei auch Build Action zu setzen.

Jetzt kann man sowohl ein Person auslesen und dann ihre Stadt ermitteln als auch eine Stadt auslesen und dann alle Einwohner ermitteln:

var session=NHibernateDBStuff.getSession();
var query = session.CreateQuery("from Person");
var result2 = query.List();

foreach (Person p in result2)
{
doOutput(p.name);
if (p.city != null)
{
doOutput(p.city.cityname);
}
}


query = session.CreateQuery("from City");
var result1 = query.List();

foreach (City c in result1)
{
doOutput(c.cityname);
if (c.personsInCity != null)
{
foreach (Person p in c.personsInCity)
{
doOutput(p.persons);
}
}
}

Falls folgender Fehler kommt:

-  $exception     {"Creating a proxy instance failed"} System.Exception {NHibernate.HibernateException}
+ InnerException {"Access is denied: 'NHibernateDemo.City'.":""} System.Exception {System.TypeLoadException}

Sind alle beteiligte Klassen public und alle Getter und Setter public und virtual?

SQL in Objekten speichern

Man kann auch ganz normales SQL benutzen, z.B. um Tabellen auszulesen, die nicht gemappt sind

// this is standard SQL
String sqlText = "select pm.id as personID, pm.name as personName, ci.cityname as cityName from foo.person pm, foo.city ci where pm.citycode=ci.cityid";

// create a NHibernate SQL query for it
ISQLQuery sqlQuery=session.CreateSQLQuery(sqlText);

Gibt es jetzt noch eine ganz normale C# Klasse, die für jedes ausgelesen Feld einen entsprechenden Getter und Setter aufweist

namespace NHibernateDemo.src
{
public class PersonWithCity
{
public virtual long personID { get; set; }
public virtual String personName { get; set; }
public virtual String cityName { get; set; }
}
}

kann man das Ergebnis sogar in normale C# Objekte abspeichern lassen

// this is standard SQL
String sqlText = "select pm.id as personID, pm.name as personName, ci.cityname as cityName from foo.person pm, foo.city ci where pm.citycode=ci.cityid";

// create a NHibernate SQL query for it
ISQLQuery sqlQuery=session.CreateSQLQuery(sqlText);

// assign the columns of the to be read out of the SQL statement a data type
sqlQuery.AddScalar("personID", NHibernateUtil.Int64);
sqlQuery.AddScalar("personName", NHibernateUtil.String);
sqlQuery.AddScalar("cityName", NHibernateUtil.String);

/* NHibernate can transform the output into an normal C# object
* as long as it has getters and setters for each field we read form the SQL
*/
IResultTransformer trans = Transformers.AliasToBean(typeof(PersonWithCity));
IQuery objectQuery=sqlQuery.SetResultTransformer(trans);
01-05-2012 23.10

Unit Tests


/// <summary>
/// This is a small demo class which implements a simple stack
/// and demonstrates object cloning in C#
/// </summary>
/// <typeparam name="MyType">What type of objects your stack contains</typeparam>
public class MyStack<MyType> : ICloneable
{
private IList<MyType> stack;

/// <summary>
/// Constructor
/// </summary>
public MyStack()
{
stack = new List<MyType>();
}

/// <summary>
/// This method is from the ICloneable interface, not very handy
/// as it returns generic objects
/// </summary>
/// <returns>A clone of this object</returns>
object ICloneable.Clone()
{
return this.Clone();
}

/// <summary>
/// This method returns a clone of this object
/// </summary>
/// <returns></returns>
public MyStack<MyType> Clone()
{
return (MyStack<MyType>)this.MemberwiseClone();
}

/// <summary>
/// Add a new element
/// </summary>
/// <param name="pNewElement">The new element</param>
public void add(MyType pNewElement)
{
stack.Add(pNewElement);
}

/// <summary>
/// returns the topmost element and removes it from stack
/// </summary>
/// <returns>The topmost object</returns>
public MyType pop()
{
int maxPos = stack.Count-1;
MyType result = stack[maxPos];
stack.RemoveAt(maxPos);
return result;
}

/// <summary>
/// The number of values which are currently in our stack
/// </summary>
/// <returns>Number of elements in stack</returns>
public int getSize()
{
return stack.Count;
}

/// <summary>
/// We override the equals method
/// </summary>
/// <param name="obj">Other object</param>
/// <returns>True if both are equal</returns>
public bool isThisAStackWithEqualElements(MyStack<MyType> pOtherStack)
{
if (this.getSize() != pOtherStack.getSize())
{
return false;
}
else
{
for (int i = 0; i < this.getSize(); i++)
{
MyType a = this.stack[i];
MyType b = pOtherStack.stack[i];
if ((a == null && b != null) || (a != null && b == null))
{
return false;
}
else if (a != null && b != null)
{
if (!a.Equals(b)) return false;
}
}
}
return true;
}

}

In Visual Studio 2010 rechts auf die Klasse klicken, Create Unit Tests ...

/// <summary>
///This is a test class for MyStackTest and is intended
///to contain all MyStackTest Unit Tests
///</summary>
[TestClass()]
public class MyStackTest
{
private TestContext testContextInstance;

#region Additional test attributes
//
//You can use the following additional attributes as you write your tests:
//
//Use ClassInitialize to run code before running the first test in the class
//[ClassInitialize()]
//public static void MyClassInitialize(TestContext testContext)
//{
//}
//
//Use ClassCleanup to run code after all tests in a class have run
//[ClassCleanup()]
//public static void MyClassCleanup()
//{
//}
//
//Use TestInitialize to run code before running each test
//[TestInitialize()]
//public void MyTestInitialize()
//{
//}
//
//Use TestCleanup to run code after each test has run
//[TestCleanup()]
//public void MyTestCleanup()
//{
//}
//

/// <summary>
///Gets or sets the test context which provides
///information about and functionality for the current test run.
///</summary>
public TestContext TestContext
{
get
{
return testContextInstance;
}
set
{
testContextInstance = value;
}
}
#endregion

/// <summary>
///A test for MyStack`1 Constructor
///</summary>
public void MyStackConstructorTestHelper<MyType>()
{
MyStack<MyType> target = new MyStack<MyType>();
Assert.AreEqual(0, target.getSize());
}

[TestMethod()]
public void MyStackConstructorTest()
{
MyStackConstructorTestHelper<GenericParameterHelper>();
}

/// <summary>
///A test for Clone
///</summary>
public void CloneTestHelper<MyType>()
{
MyStack<MyType> original = new MyStack<MyType>();
MyStack<MyType> cloned;
cloned = original.Clone();
Assert.IsTrue(original.isThisAStackWithEqualElements(cloned));
}

[TestMethod()]
public void CloneTest()
{
CloneTestHelper<GenericParameterHelper>();
}

/// <summary>
///A test for add and pop
///</summary>
public void addTestHelper<MyType>()
{
MyStack<MyType> target = new MyStack<MyType>(); // TODO: Initialize to an appropriate value
MyType a = default(MyType); // TODO: Initialize to an appropriate value
int s_before = target.getSize();
target.add(a);
int s_while = target.getSize();
MyType b=target.pop();
int s_after = target.getSize();

Assert.AreEqual(a, b);
Assert.AreEqual(s_before, s_after);
Assert.AreEqual(s_after, s_while - 1);
}

[TestMethod()]
public void addTest()
{
addTestHelper<GenericParameterHelper>();
}

[TestMethod()]
public void popTest()
{
addTestHelper<GenericParameterHelper>();
}

/// <summary>
///A test for isThisAStackWithEqualElements
///</summary>
public void isThisAStackWithEqualElementsTestHelper<MyType>()
{
MyStack<MyType> a = new MyStack<MyType>();
MyStack<MyType> b = new MyStack<MyType>();

// empty stacks should be equal
Assert.AreEqual(a.GetHashCode(), b.GetHashCode());

MyType x = default(MyType);

a.add(x);
b.add(x);
Assert.AreEqual(a.GetHashCode(), b.GetHashCode());

b.add(x);
a.add(x);
Assert.AreEqual(a.GetHashCode(), b.GetHashCode());

a.pop();
b.pop();
Assert.AreEqual(a.GetHashCode(), b.GetHashCode());

b.pop();
a.pop();
Assert.AreEqual(a.GetHashCode(), b.GetHashCode());
}

[TestMethod()]
public void isThisAStackWithEqualElementsTest()
{
isThisAStackWithEqualElementsTestHelper<GenericParameterHelper>();
}
}
21-07-2012 15.07
Powered by PHP Created with Xemacs Valid XHTML 1.0! Valid CSS!
